PgSetStrokeCap()

Set what the ends of lines look like

Synopsis:

int PgSetStrokeCap( int cap );

Library:

ph

Description:

This function determines how the ends of thick lines are drawn. You can set cap to one of the following:

• Pg_BUTT_CAP -- the default.
• Pg_POINT_CAP
• Pg_ROUND_CAP
• Pg_SQUARE_CAP

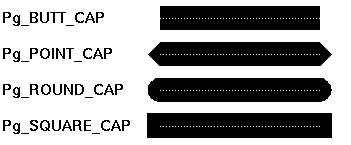

Styles for capping lines.

The dotted lines in the above examples were added to illustrate how the caps relate to the original lines; they don't normally appear.

Returns:

The previous cap value.

Classification:

Photon

See also:

PgDefaultStroke(), PgDrawEllipse(), PgDrawLine(), PgDrawPolygon(), PgDrawRect(), PgDrawRoundRect(), PgSetDrawMode(), PgSetStrokeDash(), PgSetStrokeDither(), PgSetStrokeJoin(), PgSetStrokeTransPat(), PgSetStrokeWidth(), PgSetStrokeXORColor(),

"Drawing attributes" and "Lines, pixels, and pixel arrays" in the Raw Drawing and Animation chapter of the Photon Programmer's Guide
